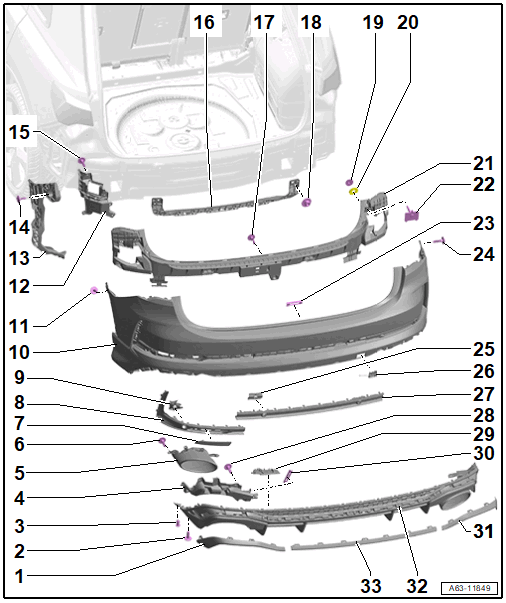

Overview - Bumper Cover, RS Q3 SPORTBACK
- Left Trim Molding
- For the bumper cover lower section
- Removing and Installing. Refer to SIDE BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, RS Q3 .
- Bolt
- Quantity: 4
- 2 Nm
- Expanding Rivet
- Mount
- For tail pipe trim
- Removing and Installing. Refer to TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING .
- Tail Pipe Trim
- Removing and Installing. Refer to TAIL PIPE TRIM, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 2 Nm
- Rear Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, RS Q3 SPORTBACK .
- Trim
- Side
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, SIDE, RS Q3 SPORTBACK .
- Mount
- for the parking aid sensor
- Clipped in the side trim
- Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Mount
- for lane change assistance control module
- Mount
- Side
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, SIDE .
- Bolt
- Quantity: 3
- Tightening sequence. Refer to Figure.
- Bolt
- Quantity: 6
- 2 Nm
- Mount
- Lower
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
- Bolt
- 2 Nm
- Nut
- Quantity: 4
- 3 Nm
- Nut
- Quantity: 4
- 5 Nm
- Sealing Washer
- Quantity: 4
- Reinforcement
- Center
- Removing and Installing. Refer to BUMPER COVER REINFORCEMENT, REMOVING AND INSTALLING .
- Threaded Pin
- Quantity: 4
- Clip
- Quantity: 10
- Bolt
- 2 Nm
- Mount
- for the parking aid sensor
- Clipped in the center trim
- Cover
- For the towing eye
- Trim
- Center
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, CENTER, RS Q3 SPORTBACK .
- Bolt
- Quantity: 4
- 2 Nm
- Mount
- For the power rear lid opening sensor and power rear lid opening control module
- Clip
- Quantity: 4
- Right Trim Molding
- For the bumper cover lower section
- Removing and Installing. Refer to SIDE BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, RS Q3 .
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, RS Q3 .
- Center Trim Molding
- For the bumper cover lower section
- Removing and Installing. Refer to CENTER BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, RS Q3 .
