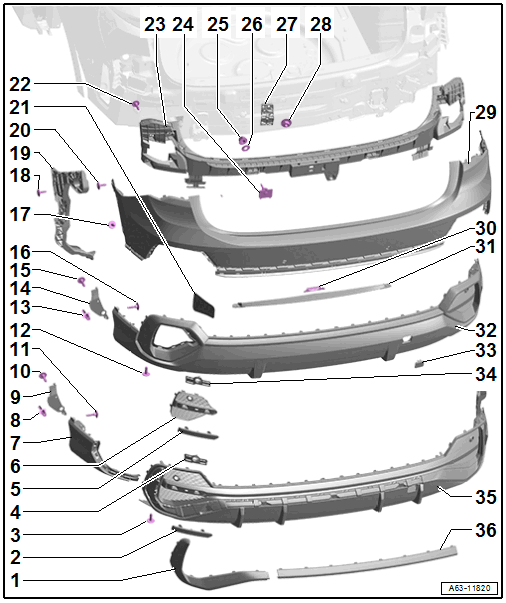

Overview - Bumper Cover, Q3 SPORTBACK Basic/S Line

Courtesy of AUDI OF AMERICA, LLC

1. Side Trim Molding
   • S line Equipment versions
   • Removing and Installing. Refer to BUMPER COVER SIDE TRIM MOLDING, REMOVING AND INSTALLING, Q3 SPORTBACK S LINE .
2. Rear Reflector
   • S line Equipment versions
   • Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, Q3 SPORTBACK .
3. Bolt
   • Quantity: 4
   • 2 Nm
4. Mount
   • for the parking aid sensor
   • S line Equipment versions
   • Clipped in the bumper cover trim
5. Rear Reflector
   • Basic equipment version
   • Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, Q3 SPORTBACK .
6. Trim
   • Basic equipment version
   • For the bumper cover
   • Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, Q3 SPORTBACK BASIC .
7. Bumper Cover Side Lower Section
   • S line Equipment versions
   • Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, Q3 SPORTBACK .
8. Expanding Rivet
9. Intermediate Piece
   • For securing the wheel housing liner
10. Bolt
    • 2 Nm
11. Bolt
    • 2 Nm
12. Bolt
    • Quantity: 4
    • 2 Nm
13. Expanding Rivet
14. Intermediate Piece
    • For securing the wheel housing liner
15. Bolt
    • 2 Nm
16. Bolt
    • 2 Nm
17. Bolt
    • 3 Nm
18. Bolt
    • Quantity: 3

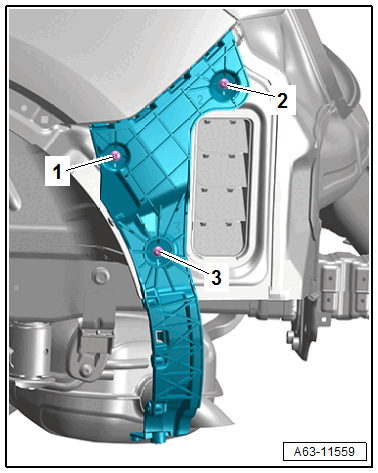

    • Tightening sequence. Refer to Figure.
19. Mount
    • Side
    • For the bumper cover
    • Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, SIDE .
20. Bolt
    • 2 Nm
21. Insulation
    • Quantity: 2
22. Bolt
    • Quantity: 3
    • 2 Nm
23. Reinforcement
    • Center
    • Removing and Installing. Refer to BUMPER COVER REINFORCEMENT, REMOVING AND INSTALLING .
24. Threaded Pin
    • Quantity: 4
25. Nut
    • Quantity: 4
    • 5 Nm
26. Sealing Washer
    • Quantity: 4
27. Mount
    • Lower
    • For the bumper cover
    • Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
28. Nut
    • Quantity: 2
    • 3 Nm
29. Bumper Cover Upper Section
    • Removing and Installing. Refer to BUMPER COVER UPPER SECTION, REMOVING AND INSTALLING .
    • Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
30. Clip
    • Quantity: 5
31. Reinforcement
    • For the bumper cover lower section
    • Removing and Installing. Refer to BUMPER COVER REINFORCEMENT, REMOVING AND INSTALLING .
32. Bumper Cover Lower Section
    • Basic equipment version
    • Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, Q3 SPORTBACK .
    • Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
33. Cover
    • For the towing eye
34. Mount
    • for the parking aid sensor
    • Basic equipment version
    • Clipped in the bumper cover trim
35. Bumper Cover Lower Section
    • S line Equipment versions
    • Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, Q3 SPORTBACK .
    • Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
36. Center Trim Molding
    • S line Equipment versions
    • Removing and Installing. Refer to BUMPER COVER CENTER TRIM MOLDING, REMOVING AND INSTALLING, Q3 SPORTBACK S LINE .
