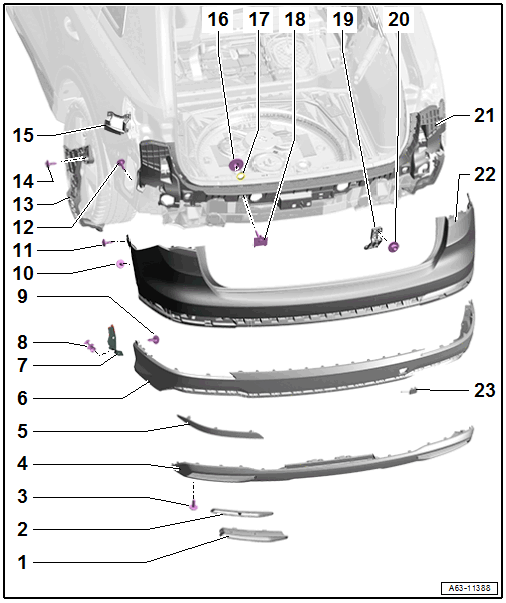

Overview - Bumper Cover, Q3 S Line
- Trim
- Upper
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, Q3 S LINE .
- Trim
- Lower
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, Q3 S LINE .
- Bolt
- Quantity: 4
- 2 Nm
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, Q3 .
- Rear Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING .
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
- Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Intermediate Piece
- For securing the wheel housing liner
- Expanding Rivet
- Bolt
- 2 Nm
- Bolt
- 3 Nm
- Bolt
- 2 Nm
- Bolt
- Quantity: 3
- 2 Nm
- Mount
- Side
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, SIDE .
- Bolt
- Quantity: 3
- Tightening sequence. Refer to Figure.
- Mount
- for lane change assistance control module
- Nut
- Quantity: 4
- 5 Nm
- Sealing Washer
- Quantity: 4
- Threaded Pin
- Quantity: 4
- Mount
- Lower
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
- Nut
- Quantity: 2
- 3 Nm
- Reinforcement
- Center
- Removing and Installing. Refer to BUMPER COVER REINFORCEMENT, REMOVING AND INSTALLING, SPORTBACK .
- Bumper Cover Upper Section
- Removing and Installing. Refer to BUMPER COVER UPPER SECTION, REMOVING AND INSTALLING .
- Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Cover
- For the towing eye
