Overview - Bumper Cover, Q3 Basic/Lines

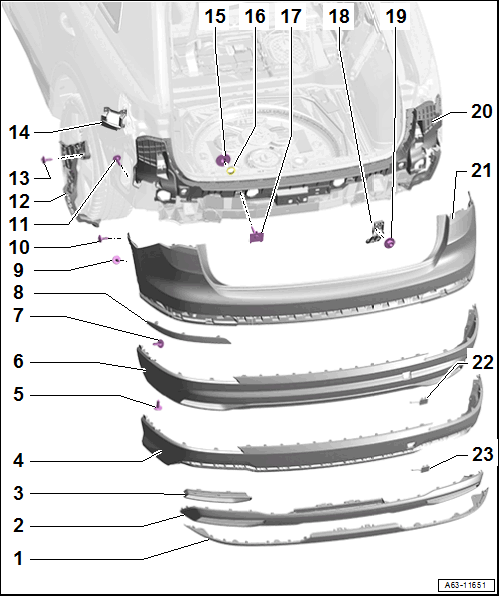

Fig 1: Exploded View Of Bumper Cover ("Basic/Lines)

Courtesy of AUDI OF AMERICA, LLC

1. Trim
   • For the bumper cover lower section
   • "Lines" equipment version
   • Removing and Installing. Refer to BUMPER COVER TRIM LOWER SECTION, REMOVING AND INSTALLING, Q3 LINES .
2. Bumper Cover Lower Section
   • "Lines" equipment version
   • Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, Q3 .
3. Trim
   • For the bumper cover
   • Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, Q3 LINES .
4. Bumper Cover Lower Section
   • "Lines" equipment version
   • Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
   • Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
5. Bolt
   • Quantity: 4
   • 2 Nm
6. Bumper Cover Lower Section
   • "Basic" vehicle equipment version
   • Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
   • Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
7. Bolt
   • 2 Nm
8. Rear Reflector
   • Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING .
9. Bolt
   • 3 Nm
10. Bolt
    • 2 Nm
11. Bolt
    • Quantity: 3
    • 2 Nm
12. Mount
    • Side
    • For the bumper cover
    • Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, SIDE .
13. Bolt
    • Quantity: 3
    • Tightening sequence. Refer to Fig 2.
14. Mount
    • for lane change assistance control module
15. Nut
    • Quantity: 4
    • 5 Nm
16. Sealing Washer
    • Quantity: 4
17. Threaded Pin
    • Quantity: 4
18. Mount
    • Lower
    • Quantity: 2
    • Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
19. Nut
    • Quantity: 2
    • 3 Nm
20. Reinforcement
    • Removing and Installing. Refer to BUMPER COVER REINFORCEMENT, REMOVING AND INSTALLING .
21. Bumper Cover Upper Section
    • Removing and Installing. Refer to BUMPER COVER UPPER SECTION, REMOVING AND INSTALLING .
    • Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
22. Cover
    • For the towing eye
23. Cover
    • For the towing eye

Bumper Cover Side Mount - Tightening Specification and Sequence

Fig 2: Bumper Cover Side Mount - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in sequence -1, 2 and 3- to 3 Nm.
