Side Bumper Cover Trim Molding, Removing And Installing, RS Q3: Removing

-- Remove the lower section of the bumper cover. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, RS Q3 .

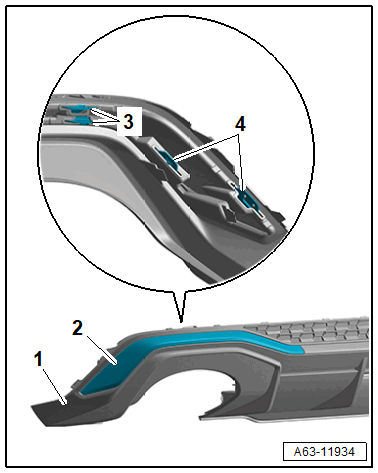

-- Release the catches -3 and 4- and remove the trim molding -2- from the lower section of the bumper cover -1-.

GWWA63-11934Courtesy of AUDI OF AMERICA, LLC
