Center Bumper Cover Trim Molding, Removing And Installing, RS Q3: Removing

-- Remove the side bumper cover trim molding. Refer to SIDE BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, RS Q3 .

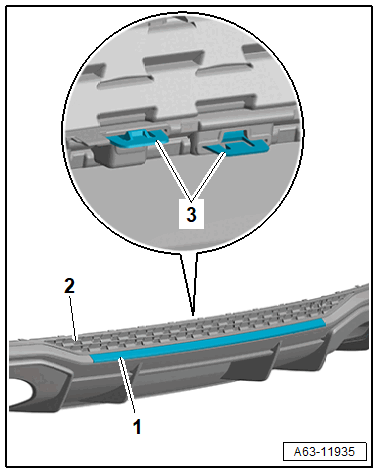

-- Release the catches -3- and remove the trim molding -1- from the lower section of the bumper cover -2-.

GWWA63-11935Courtesy of AUDI OF AMERICA, LLC
