Bumper Cover Center Trim Molding, Removing And Installing, Q3 SPORTBACK S Line: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

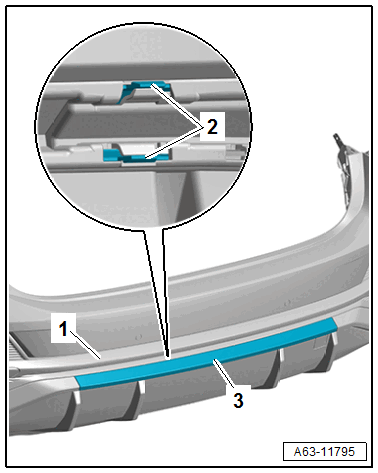

-- Release the catches -2- and remove the trim molding -3- from the bumper cover lower section -1-.

GWWA63-11795Courtesy of AUDI OF AMERICA, LLC
