Bumper Cover Trim Lower Section, Removing And Installing, Q3 Lines: Removing

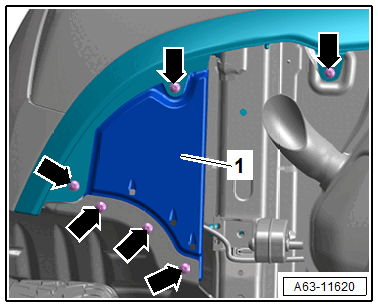

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the side underbody trim panel -1-.

-- If equipped, remove the rear lid opener control module. Refer to Refer to Power Rear Lid Opening Control Module -J938-, REMOVING AND INSTALLING .

-- Remove the reflector. Refer to REFLECTOR, REMOVING AND INSTALLING .

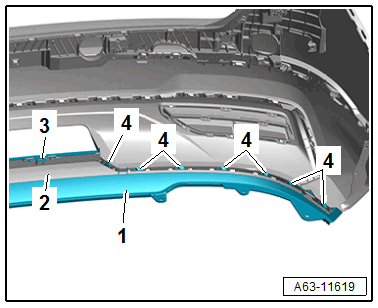

-- Release the catches -3 and 4- and remove the trim -1- from the bumper cover lower section -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Place the trim on a soft surface.
