Bumper Cover Lower Section, Removing And Installing, RS Q3: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the reflector. Refer to REFLECTOR, REMOVING AND INSTALLING .

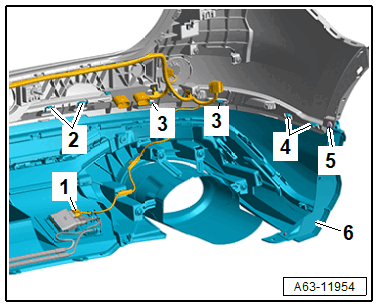

-- If equipped, disconnect the connector -1- and free up the wiring harness.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -5-.

-- Release the catches -2, 3 and 4- and remove the bumper cover lower section -6- from the bumper cover.

-- Place the bumper cover lower section on a soft surface.

-- Remove the mount for the tail pipe trim. Refer to TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING .

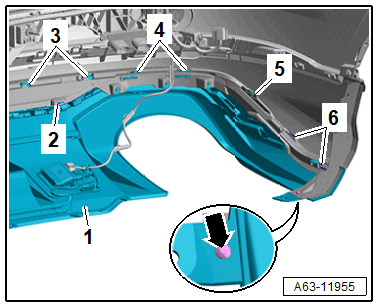

-- Pry up the clamps -2 and 6- at the same time do not destroy the tab.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the expanding rivet -arrow-.

-- Release the catches -3, 4, and 5- and remove the lower section -1- from the bumper cover.
