Bumper Cover Lower Section, Removing And Installing, Q3: Removing

-- Remove the reflector. Refer to REFLECTOR, REMOVING AND INSTALLING .

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

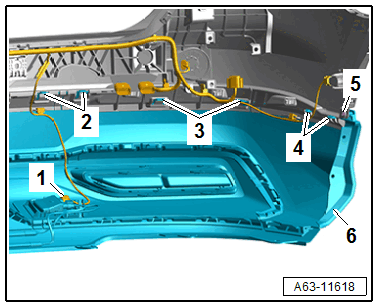

-- Disconnect the connector -1-, if equipped.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -5-.

-- Release the catches -2, 3 and 4- and remove the bumper cover lower section -6- from the bumper cover.

-- Place the bumper cover lower section on a soft surface.

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

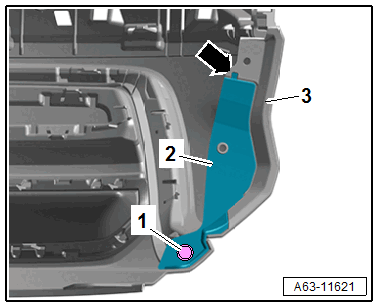

-- S line: remove the expanding rivet -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the intermediate piece -2- from the bumper cover lower section -3- -arrow-.

-- Disconnect the connector -3-, if equipped.

Courtesy of AUDI OF AMERICA, LLC

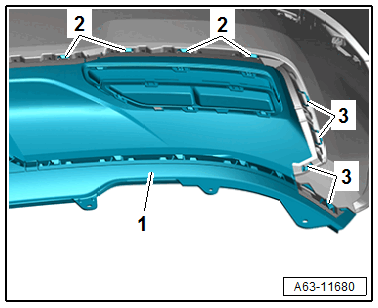

-- Release the catches -2 and 3- and remove the lower section -1- from the bumper cover.

Courtesy of AUDI OF AMERICA, LLC
