Bumper Cover Lower Section, Removing And Installing, Q3 SPORTBACK: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

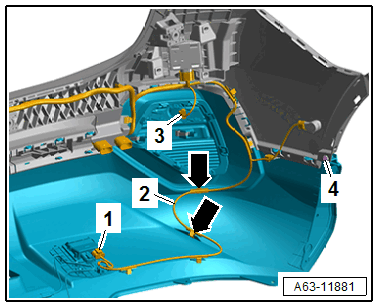

-- Disconnect the connectors -1 and 3- and free up the wiring harness -2- -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -4-.

Vehicles with basic seats:

Courtesy of AUDI OF AMERICA, LLC

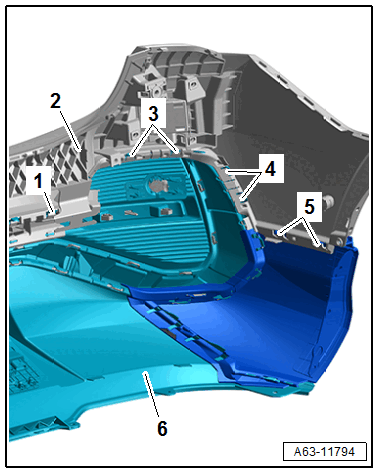

-- Release the catches -1, 3, 4 and 5- and remove the bumper cover lower section -6- from the bumper cover -2-.

-- Place the bumper cover lower section on a soft surface.

S line Equipment versions:

Courtesy of AUDI OF AMERICA, LLC

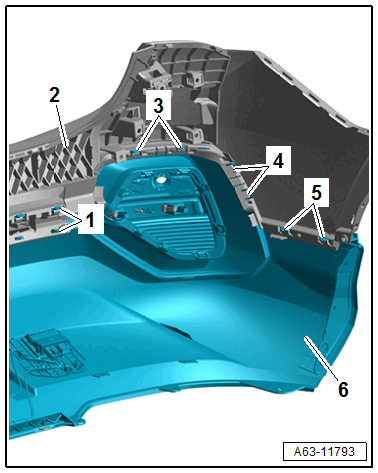

-- Release the catches -1, 3, 4 and 5- and remove the bumper cover lower section -6- from the bumper cover -2-.

-- Place the bumper cover lower section on a soft surface.

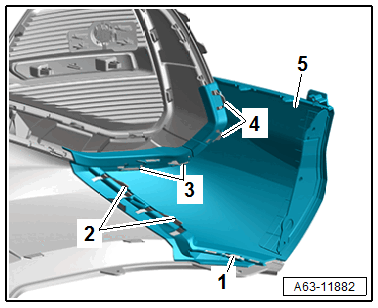

-- Release the catches -1, 2, 3 and 4- and remove the bumper cover side lower section -5-.

Courtesy of AUDI OF AMERICA, LLC
