Side Air Intake Grille, Removing And Installing, RS Q3: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the side air intake grille trim molding. Refer to SIDE AIR INTAKE GRILLE TRIM MOLDING, REMOVING AND INSTALLING, RS Q3 .

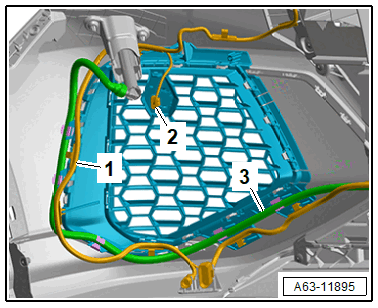

-- Disconnect the connector -2- and free up the wiring harness -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the washer fluid hose -3- for the headlamp washer system.

-- Remove the side bumper cover end plate. Refer to SIDE BUMPER COVER END PLATE, REMOVING AND INSTALLING, RS Q3 .

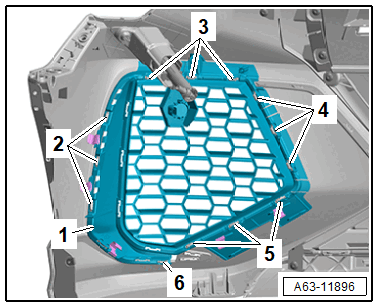

-- Release the catches -2 to 6-.

Courtesy of AUDI OF AMERICA, LLC

-- Rear the air intake grille -1- toward the rear from the bumper cover.
