Side Air Intake Grille, Removing And Installing, Q3 S Line, Q3 SPORTBACK: Removing

-- Remove the side air intake grille trim molding. Refer to SIDE AIR INTAKE GRILLE TRIM MOLDING, REMOVING AND INSTALLING, Q3 S LINE, Q3 SPORTBACK .

-- Remove the side panel for the bumper cover end plate. Refer to BUMPER COVER SIDE PANEL END PLATE, REMOVING AND INSTALLING, Q3 .

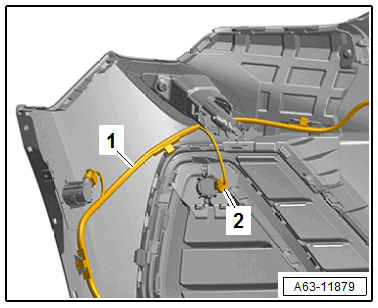

-- Equipped on some models: disconnect the connectors -2- and free up the wiring harness -1-.

Courtesy of AUDI OF AMERICA, LLC

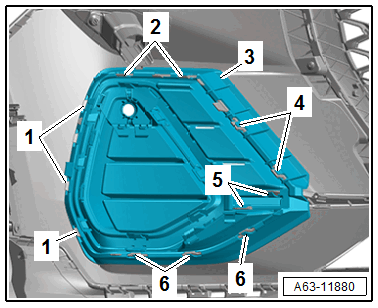

-- Release the retainers -1, 2, 4, 5 and 6-.

Courtesy of AUDI OF AMERICA, LLC

-- Rear the air intake grille -3- toward the rear from the bumper cover.
