Overview - Bumper Cover, Q3 S Line, Q3 SPORTBACK

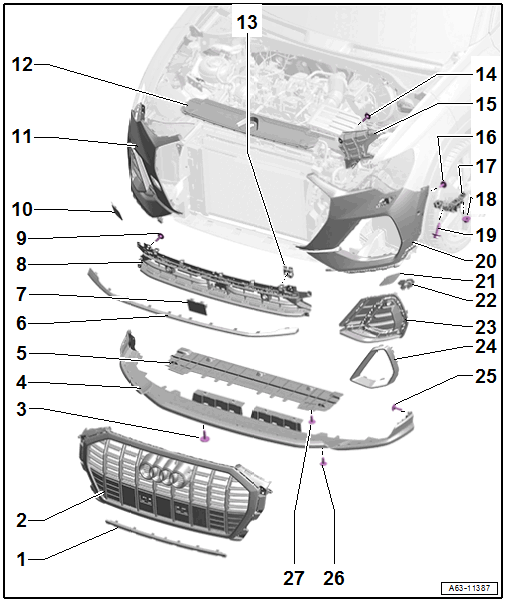

Fig 1: Exploded View Of Bumper Cover ("S Line")

Courtesy of AUDI OF AMERICA, LLC

1. Connecting Piece
   • For the bumper cover side panel
   • Removing and Installing. Refer to CONNECTING PIECE FOR BUMPER COVER SIDE PANEL, REMOVING AND INSTALLING .
2. Radiator Grille
   • Overview. Refer to OVERVIEW - RADIATOR GRILLE .
3. Bolt
   • Quantity: 4
   • 4.5 Nm
4. Front Spoiler
   • Removing and Installing. Refer to FRONT SPOILER, REMOVING AND INSTALLING, Q3 BASIC/S LINE, Q3 SPORTBACK .
5. End Panel
   • The bumper cover
   • Removing and Installing. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
6. Trim Molding
   • Removing and Installing. Refer to BUMPER COVER CENTER TRIM MOLDING, REMOVING AND INSTALLING .
7. Cover
   • For Control Module for Adaptive Cruise Control -J428-
8. Air Intake Grille
   • Center
   • Removing and Installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, Q3 .
9. Bolt
   • Quantity: 8
   • 2 Nm
10. Cover
    • For the towing eye
11. Bumper Cover Side Panel
    • Right
    • Removing and Installing. Refer to BUMPER COVER SIDE PANEL, REMOVING AND INSTALLING .
    • Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
12. Lock Carrier Cover
    • Removing and Installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
13. Mount
    • for the parking aid sensor
    • Clipped in the center air intake grille
14. Bolt
    • 2 Nm
15. End Panel
    • For the bumper cover side panel
    • Removing and Installing. Refer to BUMPER COVER SIDE PANEL END PLATE, REMOVING AND INSTALLING, Q3 .
16. Bolt
    • 2 Nm
17. Mount
    • For the bumper cover
    • Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
18. Nut
    • Quantity: 2
    • 4 Nm
19. Bolt
    • 4 Nm
20. Bumper Cover Side Panel
    • Left
    • Removing and Installing. Refer to BUMPER COVER SIDE PANEL, REMOVING AND INSTALLING .
    • Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
21. Cover
    • For the headlamp washer system washer nozzle
    • Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
22. Mount
    • for the parking aid sensor
    • Clipped in the side air intake grille
23. Air Intake Grille
    • Side
    • Removing and Installing. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, Q3 S LINE, Q3 SPORTBACK .
24. Trim Molding
    • Side Air Intake Grille
    • Removing and Installing. Refer to SIDE AIR INTAKE GRILLE TRIM MOLDING, REMOVING AND INSTALLING, Q3 S LINE, Q3 SPORTBACK .
25. Bolt
    • 2 Nm
26. Bolt
    • Quantity: 6
    • 2 Nm
27. Bolt
    • Quantity: 5
    • 2 Nm
