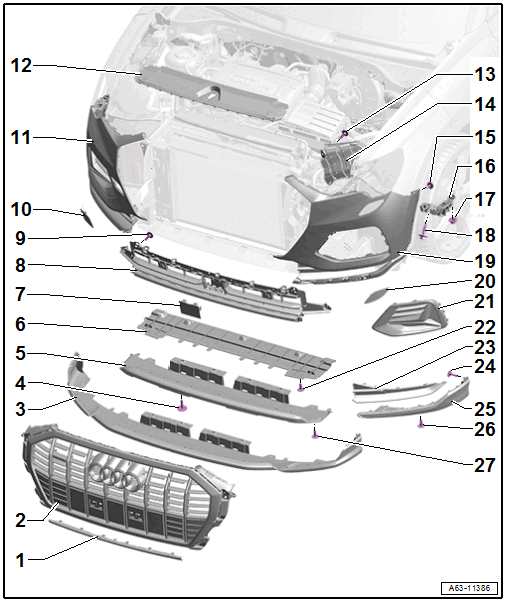

Overview - Bumper Cover, Q3 Basic/Lines
- Connecting Piece
- Removing and Installing. Refer to CONNECTING PIECE FOR BUMPER COVER SIDE PANEL, REMOVING AND INSTALLING .
- Radiator Grille
- Overview. Refer to OVERVIEW - RADIATOR GRILLE .
- Front Spoiler
- "Basic" vehicle equipment version
- Removing and Installing. Refer to FRONT SPOILER, REMOVING AND INSTALLING, Q3 BASIC/S LINE, Q3 SPORTBACK .
- Bolt
- Quantity: 4
- 4.5 Nm
- Impact Guard
- "Lines" equipment version
- Removing and Installing. Refer to IMPACT GUARD, REMOVING AND INSTALLING, Q3 .
- End Panel
- The bumper cover
- Removing and Installing. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
- Cover
- For Control Module for Adaptive Cruise Control -J428-
- Air Intake Grille
- Center
- Removing and Installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, Q3 .
- Bolt
- Quantity: 8
- 2 Nm
- Cover
- For the towing eye
- Bumper Cover Side Panel
- Right
- Removing and Installing. Refer to BUMPER COVER SIDE PANEL, REMOVING AND INSTALLING .
- Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Lock Carrier Cover
- Removing and Installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- End Panel
- For the bumper cover side panel
- Removing and Installing. Refer to BUMPER COVER SIDE PANEL END PLATE, REMOVING AND INSTALLING, Q3 .
- Bolt
- 2 Nm
- Mount
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Nut
- Quantity: 2
- 4 Nm
- Bolt
- 4 Nm
- Bumper Cover Side Panel
- Left
- Removing and Installing. Refer to BUMPER COVER SIDE PANEL, REMOVING AND INSTALLING .
- Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Cover
- For the headlamp washer system washer nozzle
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
- Air Intake Grille
- Side
- Removing and Installing. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, Q3 BASIC/LINES .
- Bolt
- Quantity: 5
- 2 Nm
- Trim
- Bolt
- 2 Nm
- Front Spoiler
- Side
- "Lines" equipment version
- Removing and Installing. Refer to FRONT SPOILER, REMOVING AND INSTALLING, Q3 LINES .
- Bolt
- 2 Nm
- Bolt
- Quantity: 6
- 2 Nm
