Outside Air Temperature Sensor -G17- BRACKET, REMOVING AND INSTALLING: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

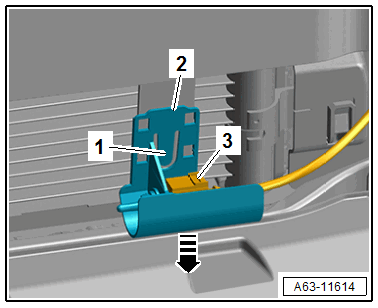

-- Disconnect the connector -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catch -1- and remove the bracket -2- downward from the mount.

If the bracket is replaced, additionally install:

• Outside air temperature sensor. Refer to OUTSIDE AIR TEMPERATURE SENSOR -G17-, REMOVING AND INSTALLING .
