Connecting Piece For Bumper Cover Side Panel, Removing And Installing: Removing
-- S line: remove the center trim molding. Refer to BUMPER COVER CENTER TRIM MOLDING, REMOVING AND INSTALLING .
-- Remove the center air intake grille. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, Q3 .

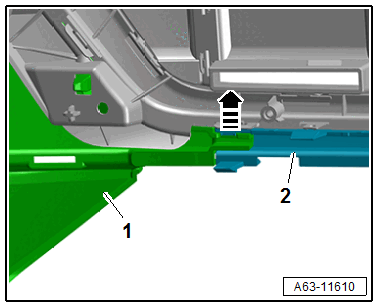

-- Release the catch -arrow- and remove the locking tab -2- toward the front from the bumper cover side panel -1-.
