Center Air Intake Grille, Removing And Installing, RS Q3: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the reinforcement brace for the radiator grille. Refer to Refer to REINFORCEMENT BRACE, REMOVING AND INSTALLING, RS Q3 .

-- Disconnect the connectors -1 and 4- and free up the wiring harness -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the washer fluid hose -3- for the headlamp washer system.

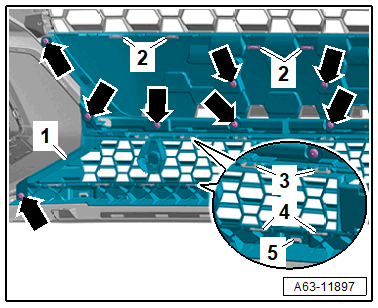

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Pry up the clamps -2- at the same time do not destroy the tab.

-- Release the retainers -3, 4 and 5- and remove the air intake grille -1- from the bumper cover.
