Center Air Intake Grille, Removing And Installing, Q3: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

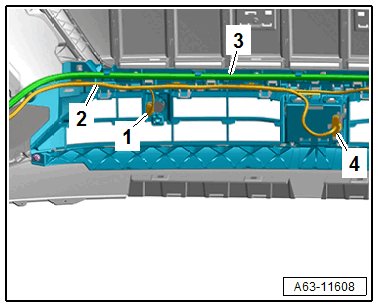

-- Disconnect the connectors -1 and 4- and free up the wiring harness -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the washer fluid hose -3- for the headlamp washer system.

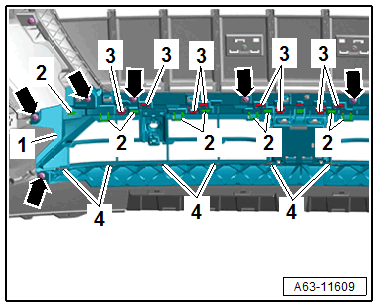

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- S line: release the catches -2- of the trim molding.

-- Release the retainers -3 and 4- and remove the air intake grille -1- from the bumper cover.
