Bumper Cover Side Panel, Removing And Installing, Q3 Lines: Removing
-- Remove the side panel for the bumper cover end plate. Refer to BUMPER COVER SIDE PANEL END PLATE, REMOVING AND INSTALLING, Q3 .
-- Remove the radiator grille reinforcement brace. Refer to REINFORCEMENT BRACE, REMOVING AND INSTALLING .
-- Remove the impact guard. Refer to IMPACT GUARD, REMOVING AND INSTALLING, Q3 .
-- Remove the center air intake grille. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, Q3 .
-- Disconnect the connectors -2 and 5- and free up the wiring harness -1-.
-- Press the release buttons and remove the connecting piece -4-.
-- Free up the washer fluid hose -3-.
-- Remove the connecting piece for the bumper cover end plate. Refer to Refer to CONNECTING PIECE FOR BUMPER COVER SIDE PANEL, REMOVING AND INSTALLING .

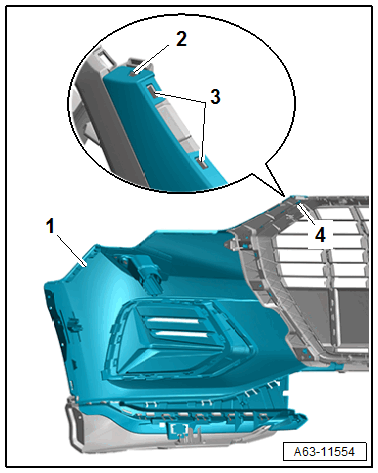

-- Release the retainers -2, 3 and 4- and remove the bumper cover side panel -1-.
