Bumper Cover Side Panel End Plate, Removing And Installing, Q3: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Free up the wiring harness.

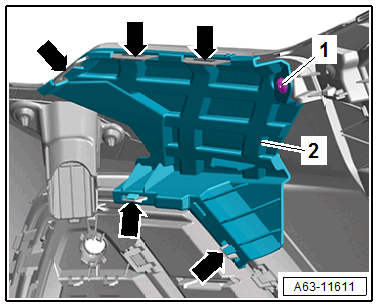

-- Remove the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -arrows- and remove the end plate -2-.

TIP:

If the end panel cannot be removed, loosen the radiator grille reinforcement brace. Refer to Refer to REINFORCEMENT BRACE, REMOVING AND INSTALLING .
