Bumper Cover Mount, Removing And Installing: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the headlamps. Refer to HEADLAMP, REMOVING AND INSTALLING .

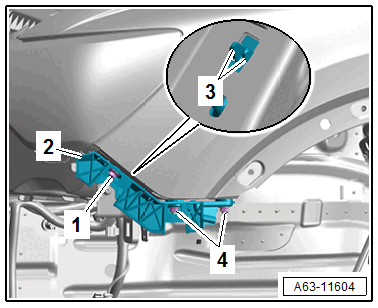

-- Remove the nuts -4- and the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bumper cover mount -2- downward. This will release the retainers -3-.
