Bumper Cover Center Trim Molding, Removing And Installing: Removing

-- Remove the side air intake grille trim molding. Refer to SIDE AIR INTAKE GRILLE TRIM MOLDING, REMOVING AND INSTALLING, Q3 S LINE, Q3 SPORTBACK .

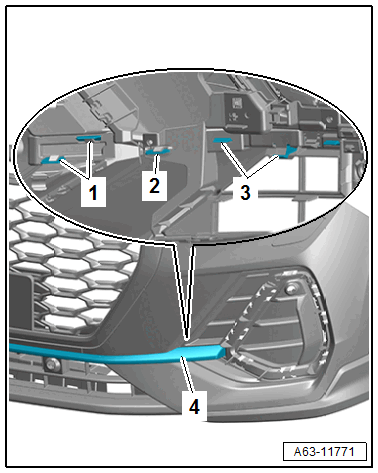

-- Release the catches -1, 2 and 3-.

GWWA63-11771Courtesy of AUDI OF AMERICA, LLC

-- Remove the trim molding -4- forward.
