Side Air Intake Grille Trim Molding, Removing And Installing, RS Q3: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Free up the wiring harness -1-.

-- Free up the washer fluid hose -3- for the headlamp washer system.

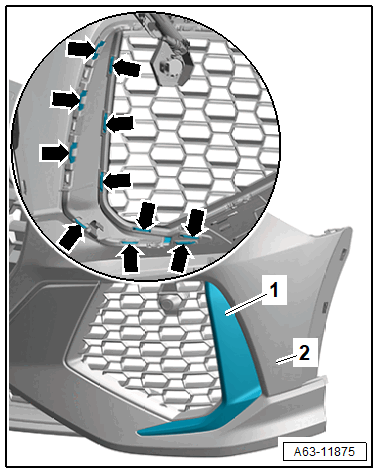

-- Release the retainers -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the trim molding -1- forward from the bumper cover -2-.
