Headlamp Mount, Removing And Installing: Removing

-- Remove the bumper. Refer to BUMPER COVER, REMOVING AND INSTALLING .

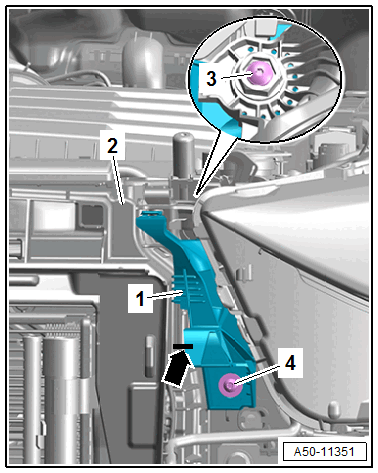

-- For the reinstallation mark the installation position of the mount -1- to the lock carrier -2- -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -3 and 4-.

-- Push the mount downward and remove it forward.
