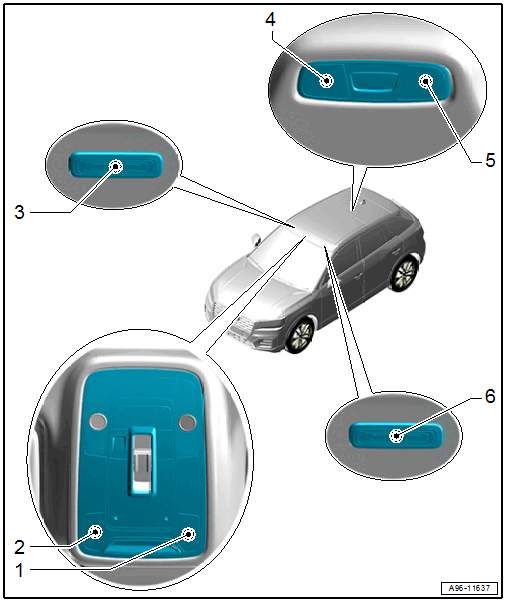

Component Location Overview - Roof Trim Panel Lamps
- Left Front Reading Lamp -W65-
- The front roof module must be replaced if one of the LEDs is faulty
- Removing and Installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Right Front Reading Lamp -W66-
- The front roof module must be replaced if one of the LEDs is faulty
- Removing and Installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Illuminated Vanity Mirror
- LHD, Front Passenger Vanity Mirror Lamp -W14-
- RHD, Driver Vanity Mirror Lamp -W20-
- The vanity mirror illumination must be replaced if one of the LEDs is faulty
- Removing and Installing. Refer to Driver Vanity Mirror Lamp -W20- /Front Passenger Vanity Mirror Lamp -W14-, REMOVING AND INSTALLING .
- Left Rear Reading Lamp -W11-
- The rear interior lamp must be replaced if one of the LEDs is faulty
- Removing and installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Right Rear Reading Lamp -W12-
- The rear interior lamp must be replaced if one of the LEDs is faulty
- Removing and installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Illuminated Vanity Mirror
- LHD, Driver Vanity Mirror Lamp -W20-
- RHD, Front Passenger Vanity Mirror Lamp -W14-
- The vanity mirror illumination must be replaced if one of the LEDs is faulty
- Removing and Installing. Refer to Driver Vanity Mirror Lamp -W20- /Front Passenger Vanity Mirror Lamp -W14-, REMOVING AND INSTALLING .
