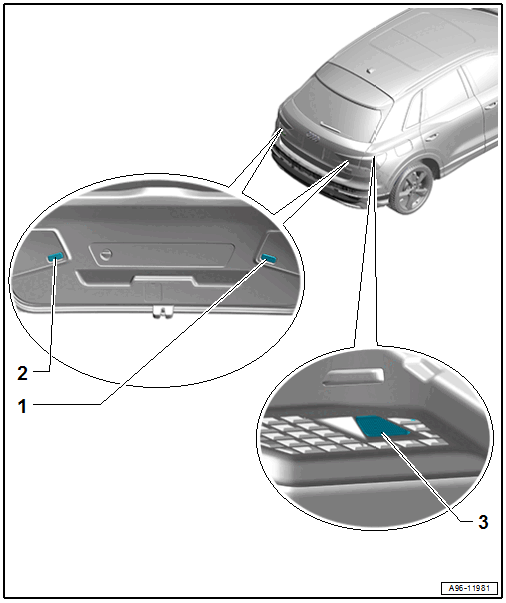

Component Location Overview - Luggage Compartment Lamps

Courtesy of AUDI OF AMERICA, LLC

1. Ambient Lamp 1 in Rear Lid -W61-
   • Removing and installing. Refer to Ambient Lamp 1 in Rear Lid -W61- /Ambient Lamp 2 in Rear Lid -W62-, REMOVING AND INSTALLING .
2. Ambient Lamp 2 in Rear Lid -W62-
   • Removing and installing. Refer to Ambient Lamp 1 in Rear Lid -W61- /Ambient Lamp 2 in Rear Lid -W62-, REMOVING AND INSTALLING .
3. Luggage Compartment Lamp -W3-
   • Removing and installing. Refer to Luggage Compartment Lamp -W3-, REMOVING AND INSTALLING .
