Ambient Lamp 1 in Rear Lid -W61- /Ambient Lamp 2 in Rear Lid -W62-, REMOVING AND INSTALLING: Removing

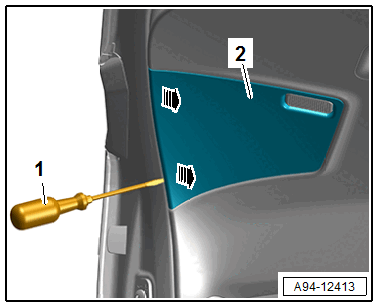

-- Release and remove the cover -2- with a screwdriver -1- from the clamp in direction of -arrows-.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Disconnect the connector.

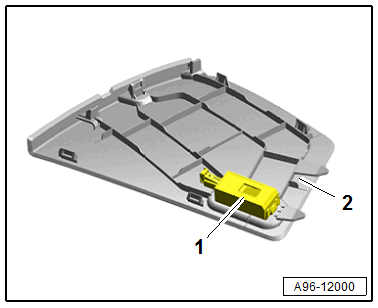

-- Remove the ambient lighting -1- from the cover -2-.
 Courtesy of AUDI OF AMERICA, LLC
|
