Trailer Hitch Release Button -E754-, REMOVING AND INSTALLING: Removing

-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

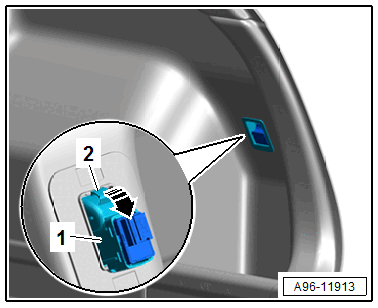

-- Release the clip -2- and press the trim -1- with the switch out of the luggage compartment side trim panel in direction of -arrow-.

GWWA96-11913Courtesy of AUDI OF AMERICA, LLC

-- Release the hooks in direction of -arrows- carefully with a small screwdriver.

Fig 1: Carefully Release Retaining Hooks
GWWA96-10671Courtesy of AUDI OF AMERICA, LLC

-- Remove the switch -1- from the trim -2-.
