Rear Lid Warning Buzzer -H32-, REMOVING AND INSTALLING: Removing

-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

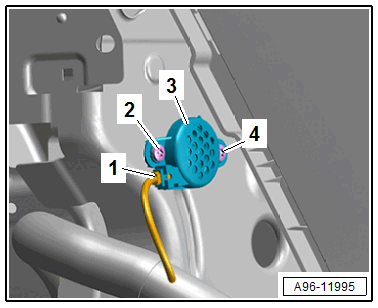

-- Remove the bolts -2 and 4-.

GWWA96-11995Courtesy of AUDI OF AMERICA, LLC

-- Remove the buzzer -3- with the expanding clips.

-- Disconnect the connector -1-.
