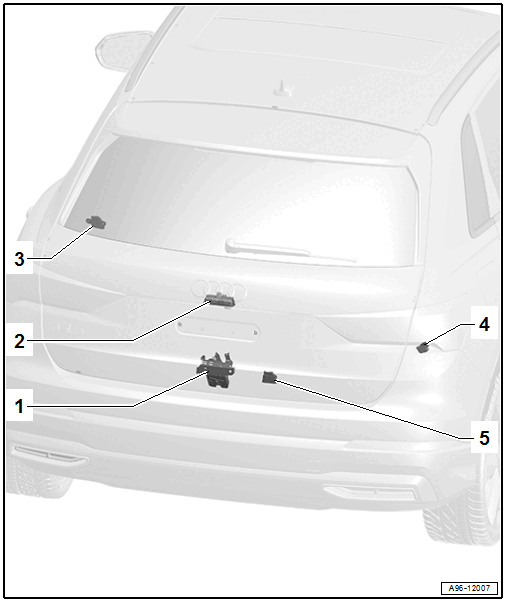

Component Location Overview - Controls In Luggage Compartment

Courtesy of AUDI OF AMERICA, LLC

1. Rear Lid Contact Switch
   • Integrated in the rear lid latch
   • Cannot be replaced separately
   • Replace the rear lid latch if it is faulty. Refer to REAR LID LOCK, REMOVING AND INSTALLING .
2. Release Button In Rear Lid Handle -E234-
   • Removing and installing. Refer to Release Button in Rear Lid Handle -E234-, REMOVING AND INSTALLING .
3. Rear Lid Warning Buzzer -H32-
   • When closing the rear lid the buzzer in the front door is activated by the rear lid remote release button.
   • Removing and installing. Refer to Rear Lid Warning Buzzer -H32-, REMOVING AND INSTALLING .
4. Trailer Hitch Release Button -E754-
   • Removing and installing. Refer to Trailer Hitch Release Button -E754-, REMOVING AND INSTALLING .
5. Rear Lid Control Head -EX58-
   • With the following integrated components
     • Rear Lid Lock Button in Luggage Compartment -E406-
     • With Locking Mechanism Button in the Rear Lid -E806-
   • The components cannot be replaced separately. Replace the control head if one of the components is faulty
   • Removing and installing. Refer to Rear Lid Control Head -EX58-, REMOVING AND INSTALLING .
