Overview - Cigarette Lighter, 12 V Socket

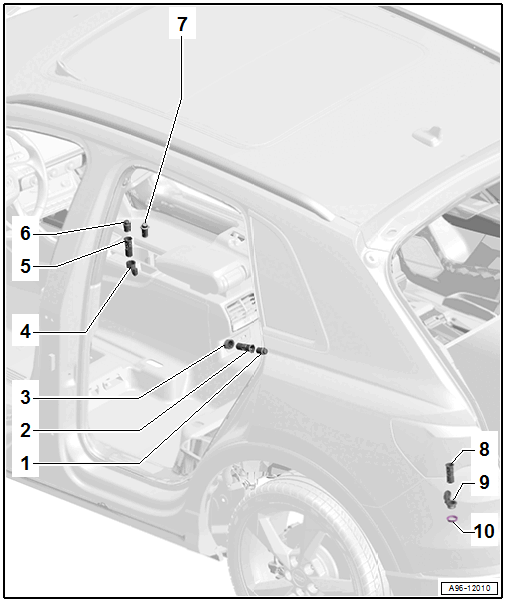

Fig 1: Cigarette Lighter, 12 V Socket Component Locations

Courtesy of AUDI OF AMERICA, LLC

1. Blind Cover for 12 V Socket
   • Equipped on some models
2. 12 V Socket -U5-
   • Removing and installing. Refer to 12 V Socket -U5-, REMOVING AND INSTALLING .
3. Socket Illumination Bulb
   • For the 12 V Socket -U5-
   • Removing and installing. Refer to CIGARETTE LIGHTER LAMP, REMOVING AND INSTALLING .
4. Cigarette Lighter Illumination Bulb
   • For the Cigarette Lighter -U1-
   • Removing and installing. Refer to CIGARETTE LIGHTER LAMP, REMOVING AND INSTALLING .
5. Cigarette Lighter -U1-
   • Removing and installing. Refer to Cigarette Lighter -U1-, REMOVING AND INSTALLING .
6. Blind Cover for 12 V Socket
   • Equipped on some models
7. Cigarette Lighter
   • Equipped on some models
8. 12 V Socket 2 -U18-
   • Removing and installing. Refer to 12 V Socket 2 -U18-, REMOVING AND INSTALLING .
   • Replacing. Refer to 12 V Socket 2 -U18-, REPLACING .
9. Mount with Cover
   • For the 12 V Socket 2 -U18-
10. Nut
    • 2 Nm
