12 V Socket 2 -U18-, REMOVING AND INSTALLING: Removing

-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

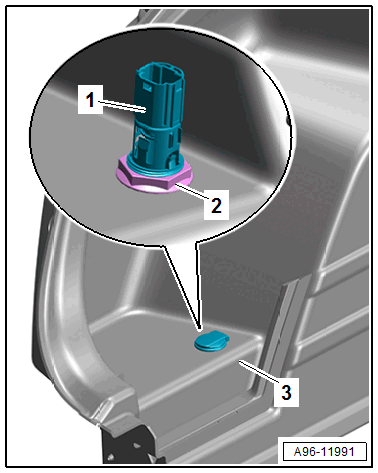

-- Remove the nut -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the 12 V socket -1- from the luggage compartment side trim panel -3-.
