Wire Junction -TV1-, REMOVING AND INSTALLING: Removing

-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to Battery -A-, DISCONNECTING AND CONNECTING, Q3, 0K0 .

-- Remove the luggage compartment floor.

-- Cut the cable tie -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -2- and open the cover -1-.

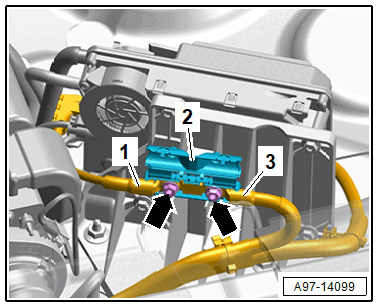

-- Remove the nuts -arrows- and remove the wires -1 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the wire junction -2-.
