Component Location Overview - Component Location Overview - Relay Panel, Instrument Panel, E-Boxes In Luggage Compartment, 48 V System, 0K4

Courtesy of AUDI OF AMERICA, LLC

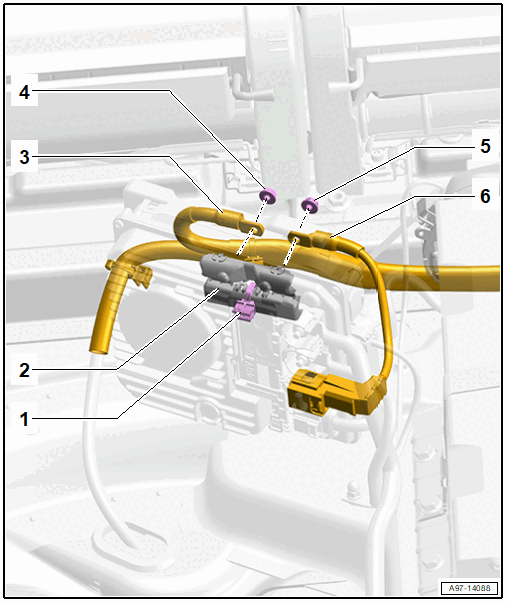

1. Cable Ties
2. Wire Junction -TV1-
   • Removing and Installing. Refer to Wire Junction -TV1-, REMOVING AND INSTALLING .
3. Positive Cable
   • Tightening specification: 20 Nm
   • To the Battery, 48 V -A6-
4. Nut
   • 18 Nm
5. Nut
   • 18 Nm
6. Wire
   • To the Voltage Converter, 48 V/12 V -A7-
