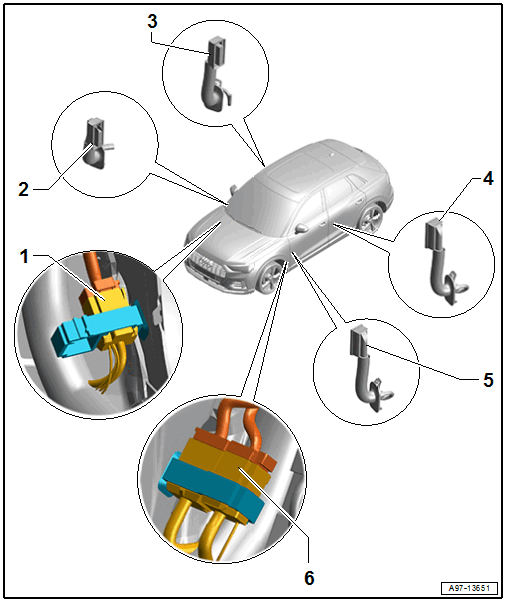

Component Location Overview - Connectors

Courtesy of AUDI OF AMERICA, LLC

1. Right A-Pillar Connector Station
   • Removing and installing. Refer to RIGHT A-PILLAR CONNECTOR STATION, REMOVING AND INSTALLING .
2. Right Front Door Cut-Off Connector
   • Disconnecting. Refer to LEFT DOOR CUT-OFF CONNECTOR, DISCONNECTING .
3. Right Rear Door Cut-Off Connector
   • Disconnecting. Refer to LEFT DOOR CUT-OFF CONNECTOR, DISCONNECTING .
4. Left Rear Door Cut-Off Connector
   • Disconnecting. Refer to LEFT DOOR CUT-OFF CONNECTOR, DISCONNECTING .
5. Left Front Door Cut-Off Connector
   • Disconnecting. Refer to LEFT DOOR CUT-OFF CONNECTOR, DISCONNECTING .
6. Left A-Pillar Connector Station
   • Removing and installing. Refer to LEFT A-PILLAR CONNECTOR STATION, REMOVING AND INSTALLING .
