Overview - Headrest And Headrest Guide, Q3

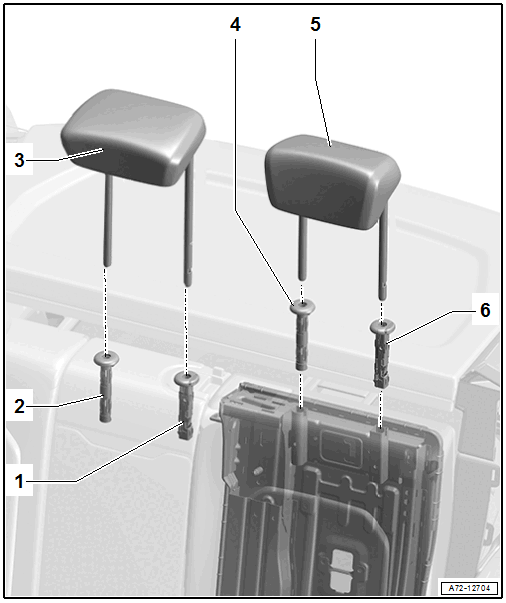

Fig 1: Exploded View Of Rear Headrest And Headrest Guide, Q3

Courtesy of AUDI OF AMERICA, LLC

Headrest Guide
- Replace after removing
- Left
- With the headrest height adjustment button
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
Headrest Guide
- Replace after removing
- Right
- With locking spring
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
Headrest
- Center
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING .
Headrest Guide
- Right
- With locking spring
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
Headrest
- Outside
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING .
Headrest Guide
- Left
- With the headrest height adjustment button
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
