Overview - Headrest And Headrest Guide, A3

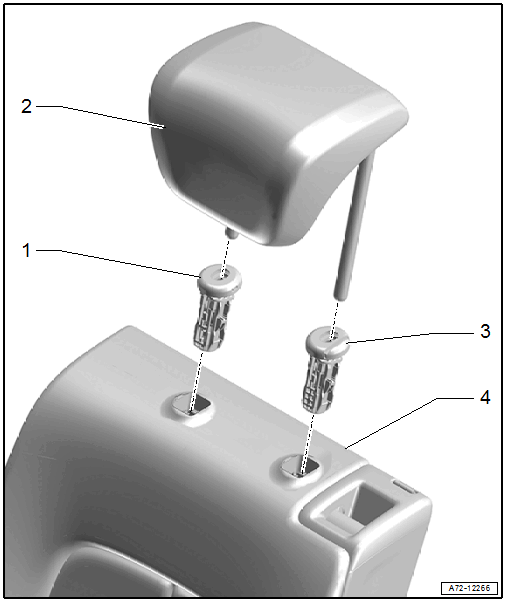

Fig 1: Exploded View Of Rear Headrest And Headrest Guide, A3

Courtesy of AUDI OF AMERICA, LLC

Right Headrest Guide
- With locking spring
- Can only be installed on one backrest side
- Guide tabs must engage in the mount cut-out on the headrest frame
- Push in until the retaining tabs correctly latch to the backrest frame.
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
Headrest
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING .
- Must be locked in the headrest guides
Left Headrest Guide
- With the headrest height adjustment button
- Can only be installed on one backrest side
- Guide tabs must engage in the mount cut-out on the headrest frame
- Push in until the retaining tabs correctly latch to the backrest frame.
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
Backrest
