Backrest Trim Panel With Pass-Through, Removing And Installing: Removing

-- Remove the center armrest. Refer to CENTER ARMREST, REMOVING AND INSTALLING .

-- Remove the lower center cushion. Refer to LOWER CENTER CUSHION, REMOVING AND INSTALLING, Q3 .

-- Fold the pass-through forward.

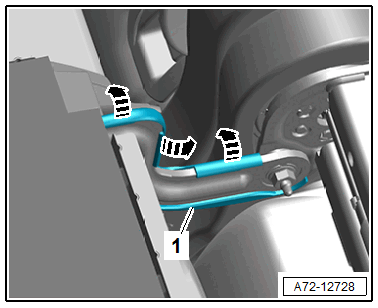

-- Unclip the trim panel -1- using a flat-head screwdriver on the catches in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage and remove the trim panel on the pass-through.
