Storage Compartment, Removing And Installing: Removing

-- Unscrew the front seat and tip to the rear with the wires attached. Refer to FRONT SEAT, REMOVING AND INSTALLING .

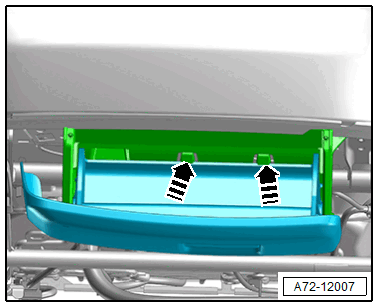

-- Release the catches in direction of -arrows- and fold the storage compartment all the way downward.

Courtesy of AUDI OF AMERICA, LLC

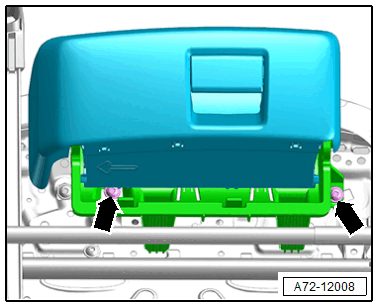

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Push the storage compartment rearward -1- in the direction of -arrow- and disengage the retainer -lower arrow- from the upper seat frame -2-.

Fig 1: Push Storage Compartment In And Disengage Retainer From Upper Seat Frame

Courtesy of AUDI OF AMERICA, LLC

-- Remove the storage compartment from the seat pan upper frame.
