Seat Frame Trim Panel, Removing And Installing, Tunnel-Side: Removing
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Secure the front seat to the Engine/Transmission Holder - Seat Repair Fixture: VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

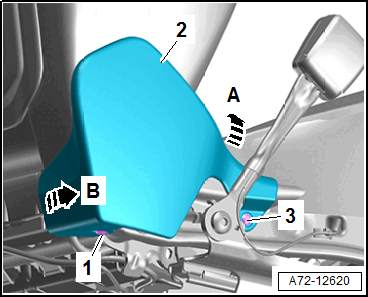

-- Remove the expanding rivets -1 and 3-.
-- Detach the front of the seat frame trim panel -2- from the seat pan in direction of -arrow A-.
-- Detach the rear of the seat trim panel at the backrest hinge in direction of -arrow B- and remove.
