Backrest Cover, Removing And Installing: Removing

-- Move the front seat to the middle position and move the backrest into the upright position.

-- Reach behind the backrest cover -1- and forcefully press the side of it toward the rear to remove it from the backrest frame.

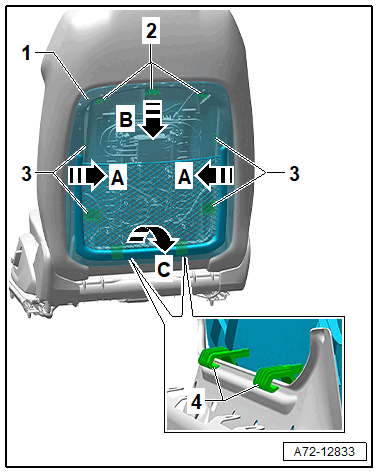

Fig 1: Backrest Cover -1-, Backrest -2-

Courtesy of AUDI OF AMERICA, LLC

TIP:

If this is difficult, loosen the side hooks with a Pry Lever: 80-200  .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the hook -4- for the lower backrest cover -1- from the backrest frame in the direction of -arrow C-.

-- Reach into the backrest cover on the upper edge and loosen the catches -2- in the direction of -the arrow B-.

-- Remove the side hook -3- for the backrest cover from the backrest frame in the direction of -arrow A-.
