Overview - Steering Column Trim Panel

The overview shows the left side as an example.

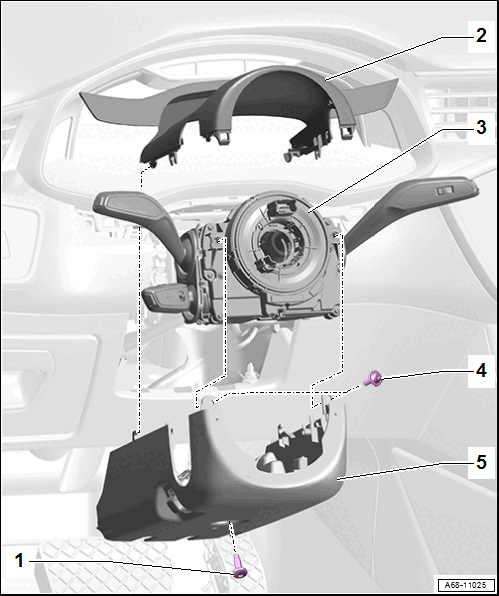

Fig 1: Exploded View Of Steering Column Trim Panel

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 2.5 Nm
2. Upper Steering Column Trim Panel
   • Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING
3. Steering Column Switch Module
   • Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
4. Bolt
   • Quantity: 2
   • 2.5 Nm
5. Lower Steering Column Trim Panel
   • Refer to LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING
