Overview - Instrument Panel Cover, Driver Side

The overview shows the left side as an example.

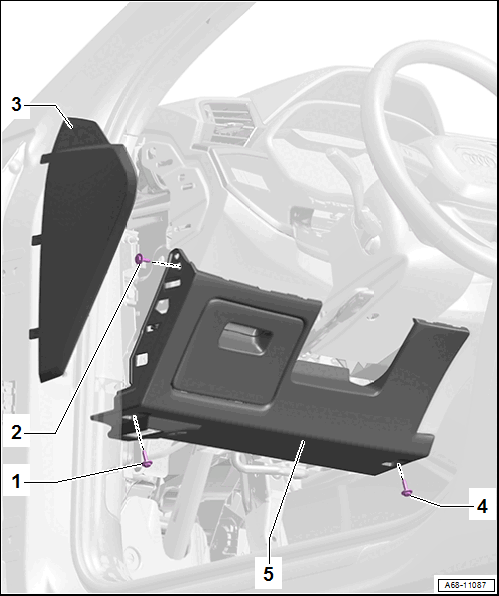

Fig 1: Exploded View Of Driver Side Instrument Panel Cover

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 3 Nm
2. Bolt
   • 3 Nm
3. Side Cover
   • For the instrument panel
   • Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING
4. Bolt
   • 3 Nm
5. Driver Side Instrument Panel Cover
   • Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING
