Overview - Front Center Armrest

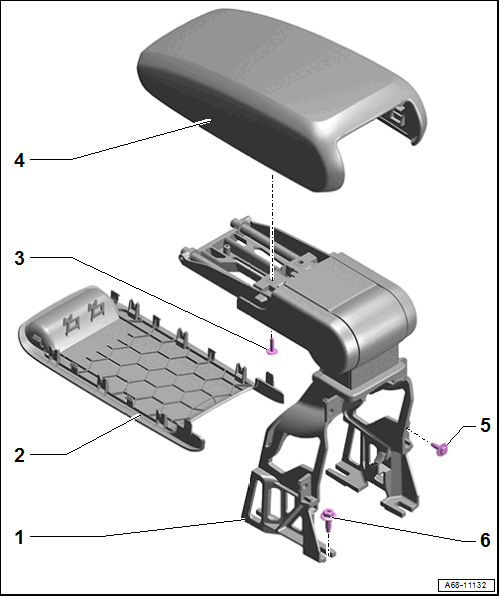

Fig 1: Exploded View Of Front Center Armrest
GWWA68-11132Courtesy of AUDI OF AMERICA, LLC
  1. Front Center Armrest
  2. Cover
  3. Bolt
    • Quantity: 4
    • 3 Nm
  4. Center Armrest Upper Section
  5. Bolt
    • Quantity: 4
    • 3 Nm
  6. Bolt
    • Quantity: 4
    • 8 Nm
