Front Center Armrest, Removing And Installing: Removing

-- Move the front seats all the way forward.

-- Remove the rear center console vent. Refer to REAR CENTER CONSOLE VENT, REMOVING AND INSTALLING .

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

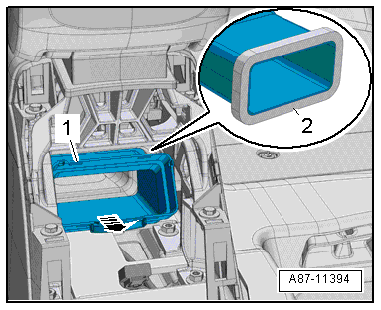

-- Remove the air duct -1- from the rear air duct -2- -arrow-.

Courtesy of AUDI OF AMERICA, LLC

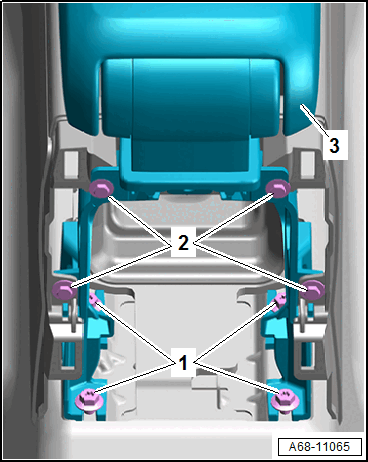

-- Remove the bolts -1 and 2- for the center armrest.

Courtesy of AUDI OF AMERICA, LLC

-- Fold down the center armrest.

-- Pull the center console sideways slightly on the side and disengage the center console.

-- Remove the center console -3- toward the rear from the center console.
