Center Armrest Upper Section, Removing And Installing: Removing

-- Fold the center armrest up.

-- Insert the Wedge Set :T10383/1  between the cover and the center armrest.

-- Unclip the cover -1- with the Wedge :T10383/1  from the center armrest -arrows-.

Courtesy of AUDI OF AMERICA, LLC

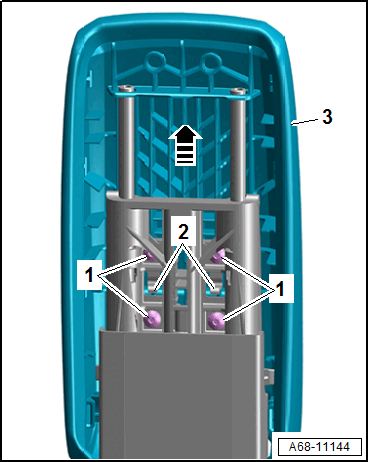

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Carefully release the catches -2- with a flat-head screwdriver.

-- Disengage the center armrest upper section -3- -arrow- and remove it.
