Trim, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

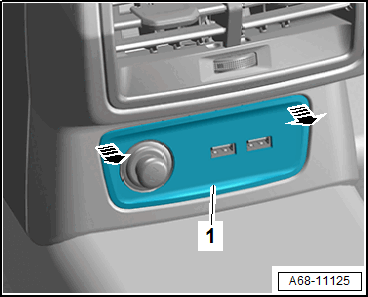

-- Unclip the trim -1- from the center console -arrows- with the trim removal wedge from the Removal Wedge Set :VAS 895 015  .

-- Disengage the remaining frame.

-- Equipped on some models: disconnect the connectors.
