Rear Center Console Vent, Removing And Installing: Removing

-- Move the front seats all the way forward.

TIP:

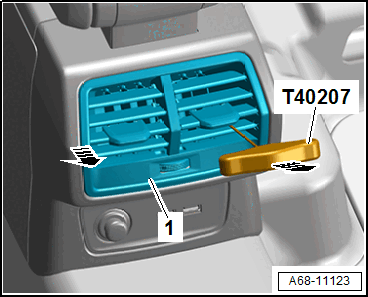

GWWA68-11123Courtesy of AUDI OF AMERICA, LLC

The vent has a hole on both sides for attaching the Hook Tool Hook Tool :T40207  .

-- Carefully insert the Hook Tool :T40207  between the slats and hook it into the side of the vent.

-- Remove the vents -1- on both sides alternating from side to side -arrows-.

-- Disconnect the connectors.
