Center Console Rear Trim, Removing And Installing: Removing

-- Move the front seats all the way forward.

Low equipment versions:

Courtesy of AUDI OF AMERICA, LLC

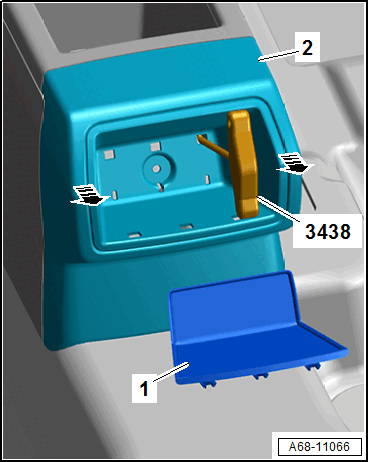

-- Remove the insert -1-.

-- Carefully remove the trim -2- from the installation opening -arrows- alternating from side to side using the T-Handle Hook :3438  .

-- Equipped on some models: disconnect the connector.

High equipment versions:

-- Equipped on some models: remove the rear center console vent. Refer to Refer to REAR CENTER CONSOLE VENT, REMOVING AND INSTALLING .

-- Equipped on some models: remove the rear center console storage compartment. Refer to Refer to CENTER CONSOLE REAR STORAGE COMPARTMENT, REMOVING AND INSTALLING .

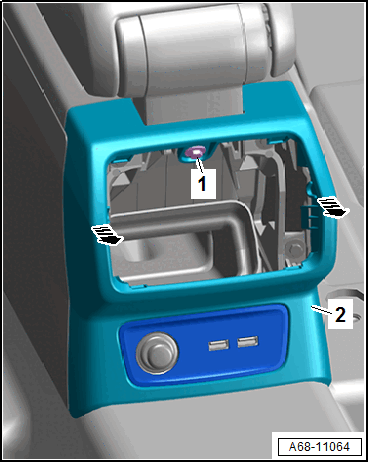

-- If installed, remove the screw -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Carefully grab the trim -2- by hand and pull toward the rear -arrows- until the catches engage.

-- Remove the socket with vent toward the rear from the center console.

-- Disconnect the connectors by pressing the release.
